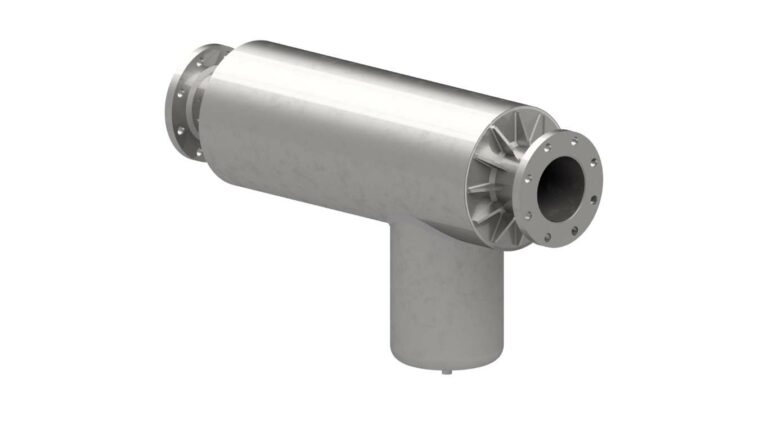

CENTRIFUGAL SEPARATOR
Design
Moisture-laden gas enters the inlet of the separator where droplets are centrifugally spun to the inner surface of the vessel by means of a stationary designed impeller. This action separates liquid from the gas. Liquids coalesce on the interior surface of the vessel, with solid contaminants and liquid moved to the drain for drainage or collection. Clean moisture free gas exits the separator outlet.
Design Moisture-laden gas enters the inlet of the separator where droplets are centrifugally spun to the inner surface of the vessel by means of a stationary designed impeller. This action separates liquid from the gas. Liquids coalesce on the interior surface of the vessel, with solid contaminants and liquid moved to the drain for drainage or collection. Clean moisture free gas exits the separator outlet.
Available Sizes:
Material of Construction :
Connection:
Options:
Welding:
Finish:
100NB to 600NB.
Carbon or Stainless Steel .
Flanged or with Butt Weld Ends
With Sump / Without Sump.
ASME IX: 2021. ISO 3834 Part 2 Certified.
Primer Coated.
Hot Dipped Galvanized.
Stainless Steel –Unpainted.
Complete Unit Designed, Manufactured and Tested by Bellows Warehouse.
Larger Diameters available on request.
Special material of construction available on request.
CENTRIFUGAL SEPARATOR
Design
Moisture-laden gas enters the inlet of the separator where droplets are centrifugally spun to the inner surface of the vessel by means of a stationary designed impeller. This action separates liquid from the gas. Liquids coalesce on the interior surface of the vessel, with solid contaminants and liquid moved to the drain for drainage or collection. Clean moisture free gas exits the separator outlet.

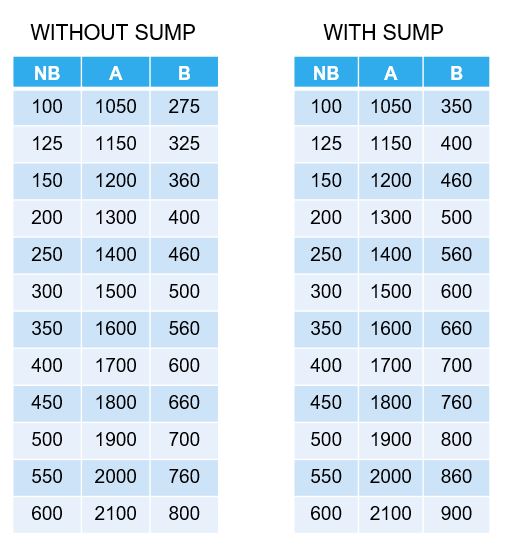

Available Sizes: 100NB to 600NB.
Material of Construction : Carbon or Stainless Steel .
Connection: Flanged or with Butt Weld Ends
Options: With Sump / Without Sump.
Welding: ASME IX: 2021. ISO 3834 Part 2 Certified.
Finish: Primer Coated.
Hot Dipped Galvanized.
Stainless Steel –Unpainted.
Complete Unit Designed, Manufactured and Tested by Bellows Warehouse.
Larger Diameters available on request.
Special material of construction available on request.
